Mount Assembly

Use this page as your step-by-step build checklist.

---

Mount reference images

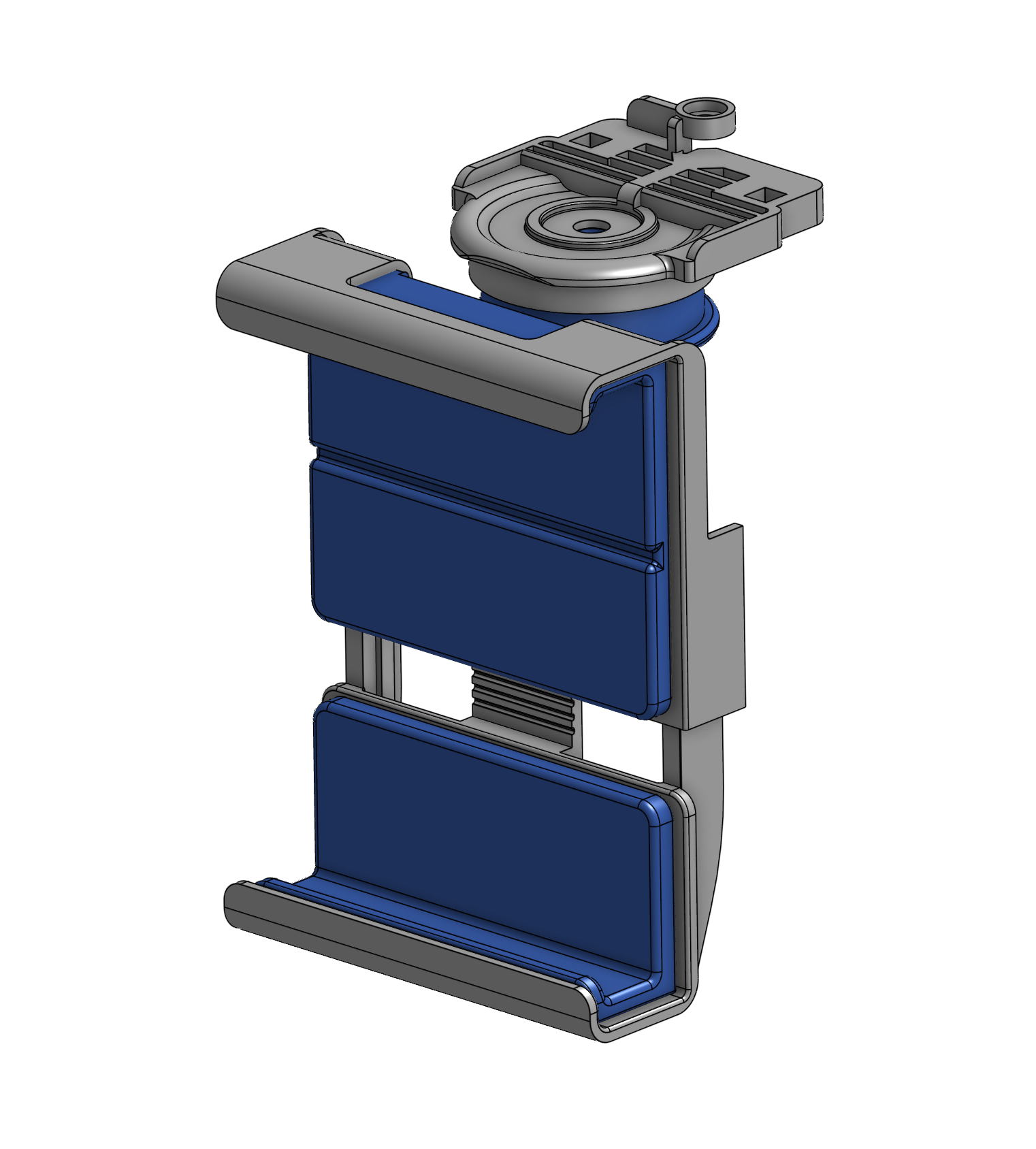

Mount structure

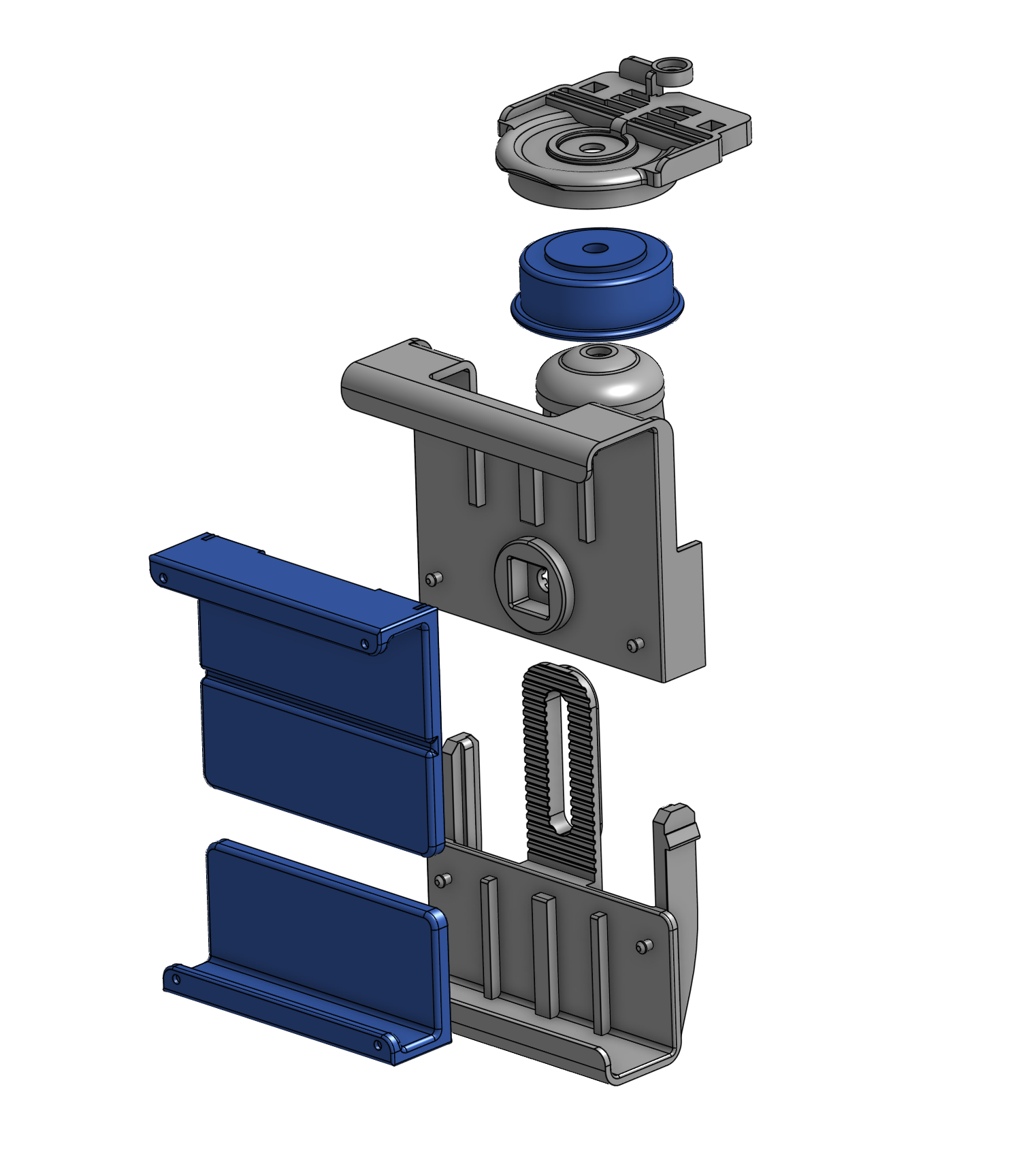

Phone holder detail

---

Assembly steps

1. Dry-fit
2. Phone inserts smoothly

3. No force required

4. Install fasteners / inserts (if used)

5. Do not overtighten into plastic

6. Add straps/velcro

7. Straps should not cover camera/IMU areas

8. Vibration damping (optional)

9. Add pads only where they do not allow “wobble”

---

Mount QA checklist

• Phone is centered and stable
• Camera view is clear
• No contact with moving parts
• No sharp edges / abrasion points
